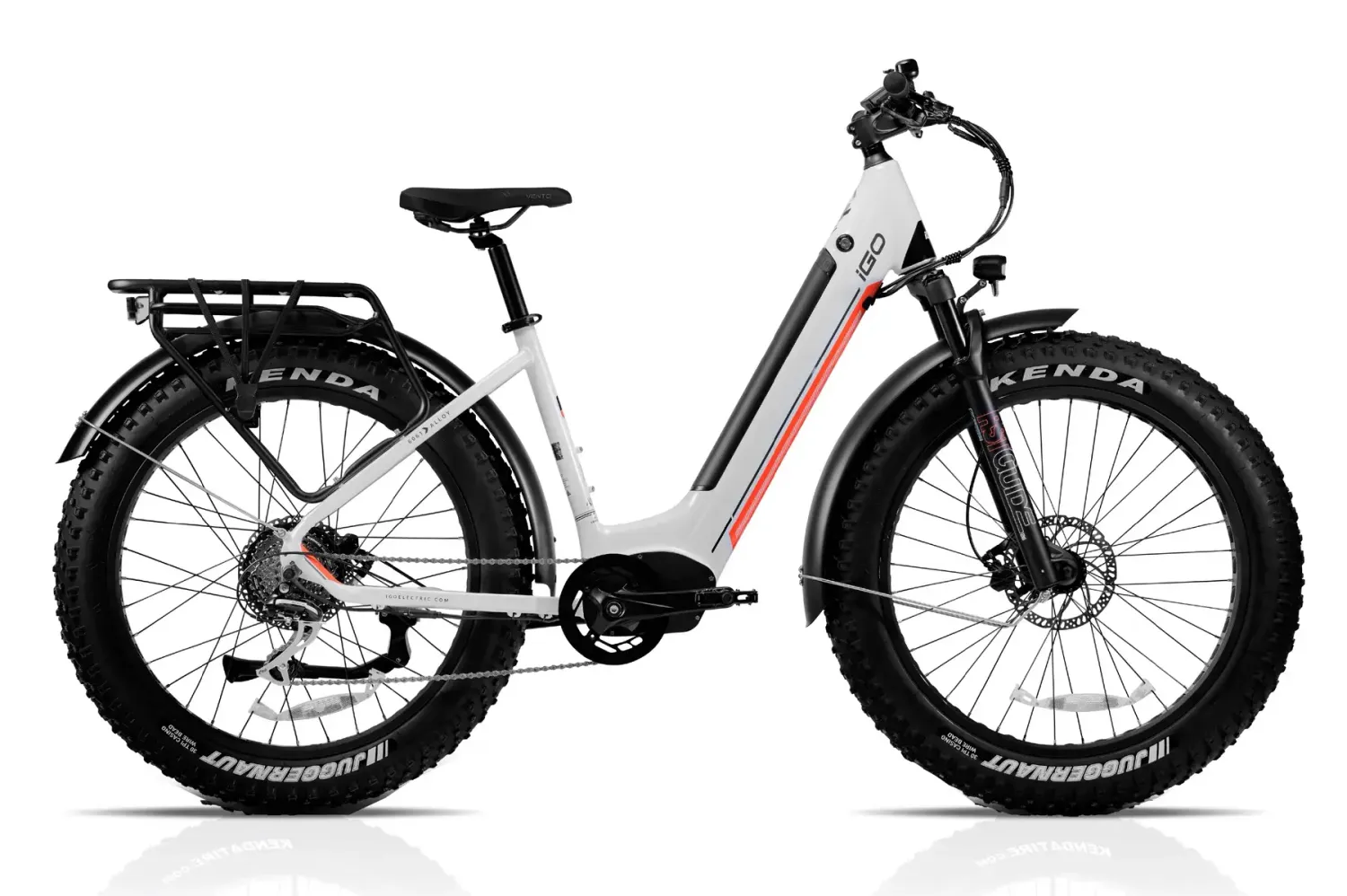

iGO CORE - EXTREME 3.1EZ
$2 599.90
Sold out
Sold out
Product Details
THE MOST ACCESSIBLE LOW STEP THROUGH FATBIKE.
Everything you have come to expect from the iGO Extreme fatbike family now with a step through design for ease of accessibility to more riders than ever.
Conceived to withstand the full force and diversity of the Canadian climate. The iGO eXtreme 3.1ez is built to excel wherever and whenever there is a will to ride. Feature rich, with immense power at your fingertips, rolling on some of the largest fat bike tires available in North America; the only limits are the ones you set yourself.
SPECIFICATIONS
| FRAMESET | |
|---|---|
| FRAME | Hydroformed 6061 Aluminum step through fat bike frame with smooth welds. Balanced geometry & increased rigidity. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock. |
| COLOR | White and Orange |
| FORK | RST suspension, 75mm travel, with lockout & quick release |
| DRIVETRAIN | |
| SHIFTERS | SHIMANO 8-speed Rapidfire shift |
| FRONT DERAILLEUR | NA |
| CHAINRINGS | Zephyr 38T with Narrow Wide teeth |
| CHAIN | KMC X8 EPT |
| REAR DERAILLEUR | SHIMANO ACERA 8-speed |
| CASSETTE | 8-speed 11-34T |
| COMPONENTS | |
| HANDLEBAR | Riser handlebar, 700mm, 30mm rise, 31.8mm dia. |
| GRIPS | VELO double density 125mm |
| STEM | Alloy 60mm with 10 degree rise, 31.8mm clamp dia. |
| SEATPOST | Alloy 30.4mm with quick release (350mm) |
| SADDLE | SELLE ROYAL Viento |
| BRAKE LEVERS | TEKTRO HD-E350 |
| BRAKE CALIPERS | TEKTRO hydraulic disc |
| ROTORS | 180mm |
| WHEELS | |
| TIRES | 26”x4.5” KENDA Juggernaut Sport fat tires |
| RIMS | iGO single wall alloy with cutouts |
| ELECTRIC TECHNOLOGY | |
|---|---|
| DISPLAY UNIT | LCD Backlit, Main Power, USB charging Port, Diagnostic, Battery Status, Light Switch, Power-assist Level Selector, Speedometer, Max Speed, Avg Speed, Odometer, Trip Timer |
| MOTOR | 500W geared brushless hi-torque rear hub motor |
| TORQUE | up to 80Nm |
| CONTROLLER | 20A 48V, 12 MOSFET hi-power cut off |
| BATTERY TYPE | 3000mAh Cell Lithium-Ion removable battery |
| BATTERY VOLTAGE (V) | 48V |
| BATTERY (AH) | 12Ah |
| BATTERY CAPACITY (WH) | 576Wh |
| RANGE | 55km (34mi) * |
| POWER ASSIST | 9 Levels of power assisted pedalling |
| THROTTLE | Any time on demand thumb throttle |
| SENSOR | Electronic 32 pulse Cadence Sensor Integrated into the bottom bracket |
| CLASS** | Class 2 ** |
| BATTERY CHARGER | 110/220V Smart charger, LED status ,CUL, 2A |
| OTHER | |
| ACCESSORIES (INCLUDED) | Front & Rear LED Lights (powered by main battery) with Reflectors Rear Cargo Rack with Increased Capacity, Pannier Ready, Front & Rear Fenders, Water Bottle Bosses, Kickstand (removable), Wellgo Flat Grip Pedals, In Frame Cable Routing, Tool Kit, Battery Charger |
| NOTES | |
| BIKE WEIGHT | 30.7kg (67.7lbs) |
| BATTERY WEIGHT | 3.3kg (7.3lbs) |
| WEIGHT CAPACITY | 100kg (220lbs) |
| GEOMETRY | |
| FRAME SIZE | 46cm (18”) - accommodates a rider from 5’0” to over 6’2” |
| SADDLE HEIGHT | 74.5cm / 94cm (29.3” / 37”) |
